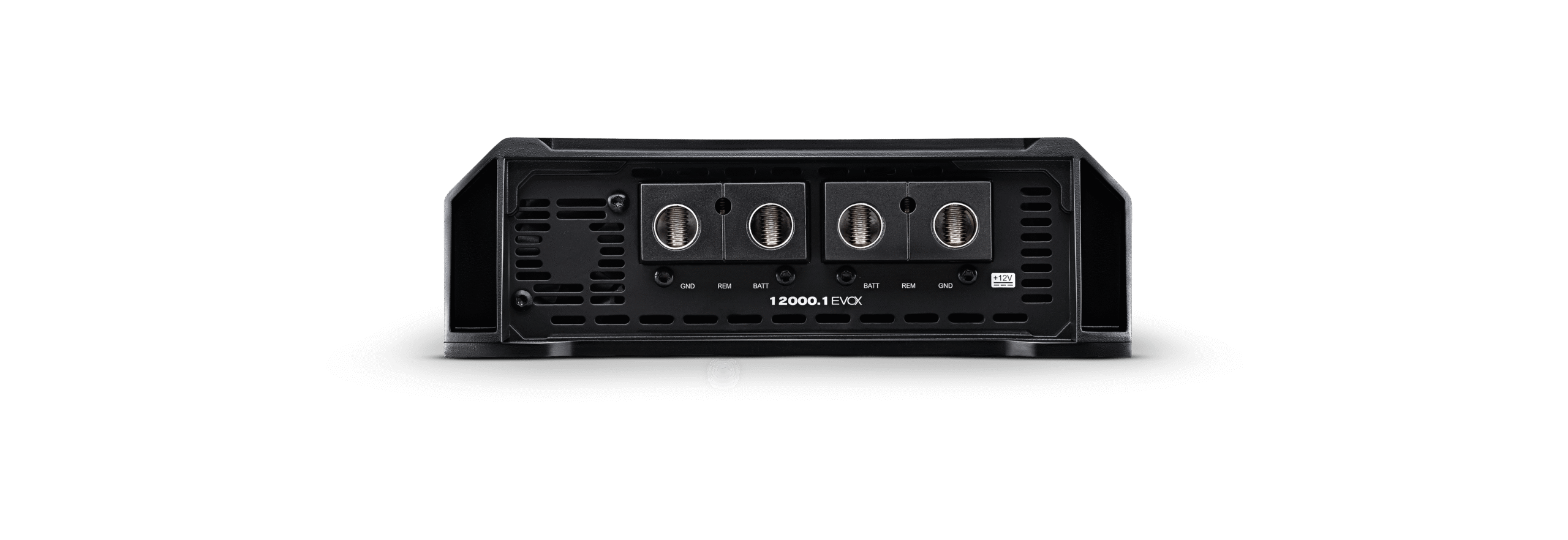

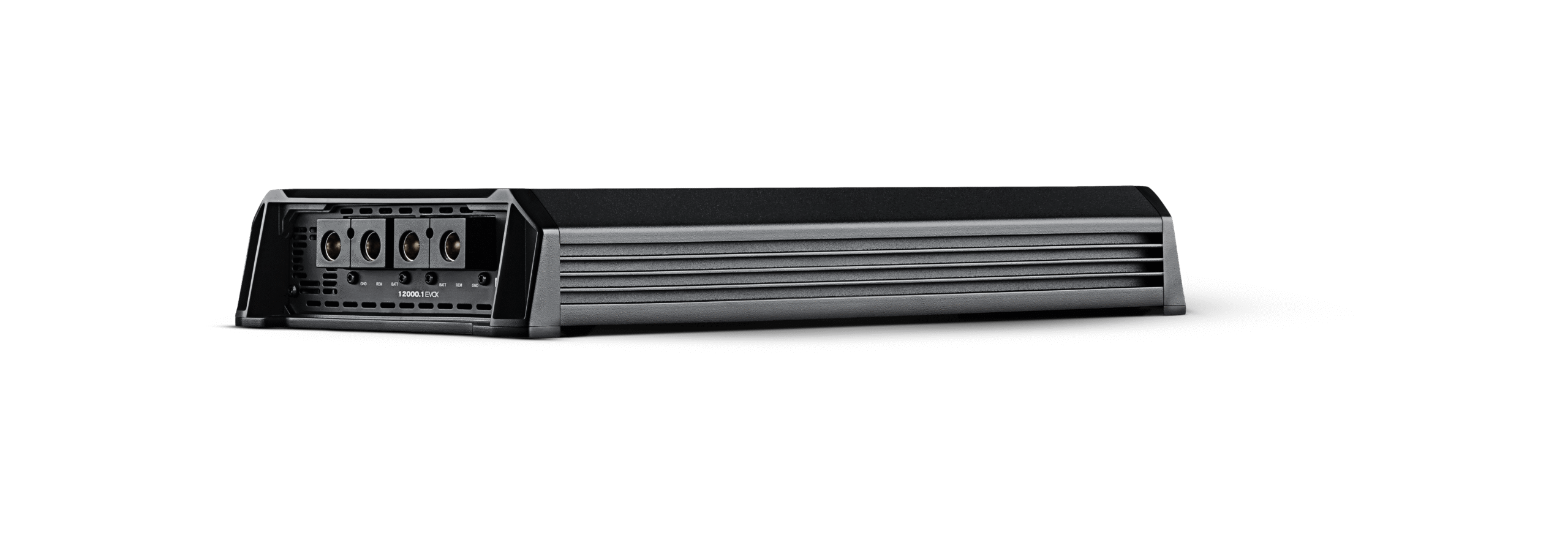

12000.1 EVOX



The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.



READ MORE

TECHNICAL SPECIFICATIONS

12000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 5227 WRMS
Power @ 12.6V @ 2Ω: 1 X 7920 WRMS
Power @ 12.6V @ 1Ω: 1 X 12000 WRMS
Power @ 14.4V @ 4Ω: 1 X 5828 WRMS
Power @ 14.4V @ 2Ω: 1 X 8831 WRMS
Power @ 14.4V @ 1Ω: 1 x 13380 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 627 A
Current Draw (Max): 1253 A
Recommended Fuse (Music): 675 A
Total Efficiency: 76%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 20.8 x 8.8 x 2.8 in
Product Dimensions: 53.0 x 22.5 x 7.1 cm

12000.1 EVOX – 2Ω
Power @ 12.6V @ 4Ω: 1 X 7920 WRMS
Power @ 12.6V @ 2Ω: 1 X 12000 WRMS
Power @ 12.6V @ 1Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 8831 WRMS
Power @ 14.4V @ 2Ω: 1 X 13380 WRMS
Power @ 14.4V @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 627 A
Current Draw (Max): 1253 A
Recommended Fuse (Music): 675 A
Total Efficiency: 76%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 20.8 x 8.8 x 2.8 in
Product Dimensions: 53.0 x 22.5 x 7.1 cm
