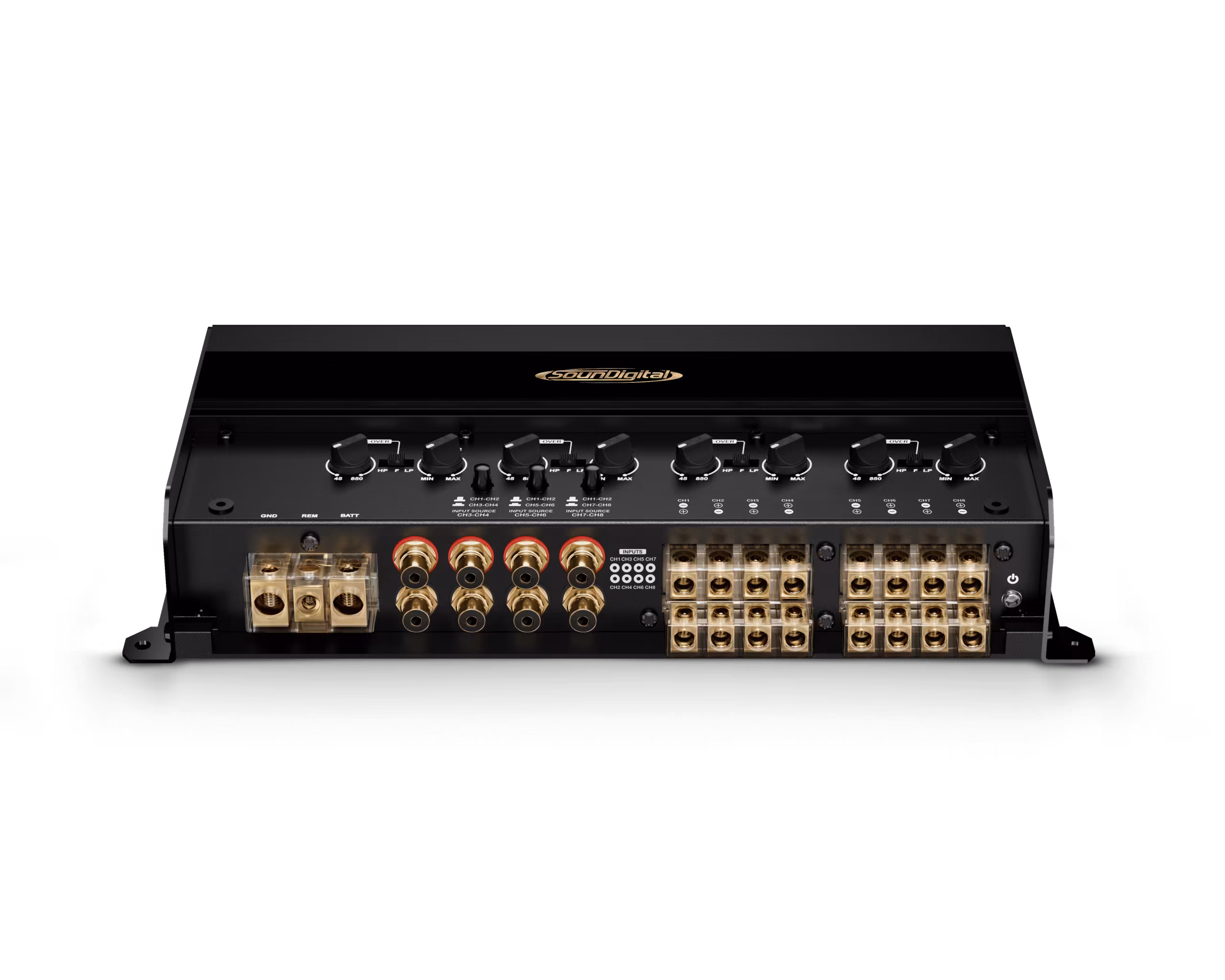

2000.8 GAN

TECHNICAL SPECIFICATIONS

GAN 2000.8 Founders Edition
Power @ 4Ω: 8 x 165 WRMS
Power @ 2Ω: 8 x 250 WRMS
Bridge Power @ 8Ω: 4 x 330 WRMS
Bridge Power @ 4Ω: 4 x 500 WRMS
Operating Voltage: 9V – 16V
Current Draw (Music): 88.3 A
Current Draw (Max): 176.6 A
Recommended Fuse (Music): 100 A
Total Efficiency: 80.44%
Damping Factor: 95.94 (Sub)
Frequency Response (-3dB): 7.8Hz – 41kHz
SNR: 114.7dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
Product Dimensions: 11.7 x 5.9 x 2.1 in
Product Dimensions: 29.8 x 15.0 x 5.4 cm
