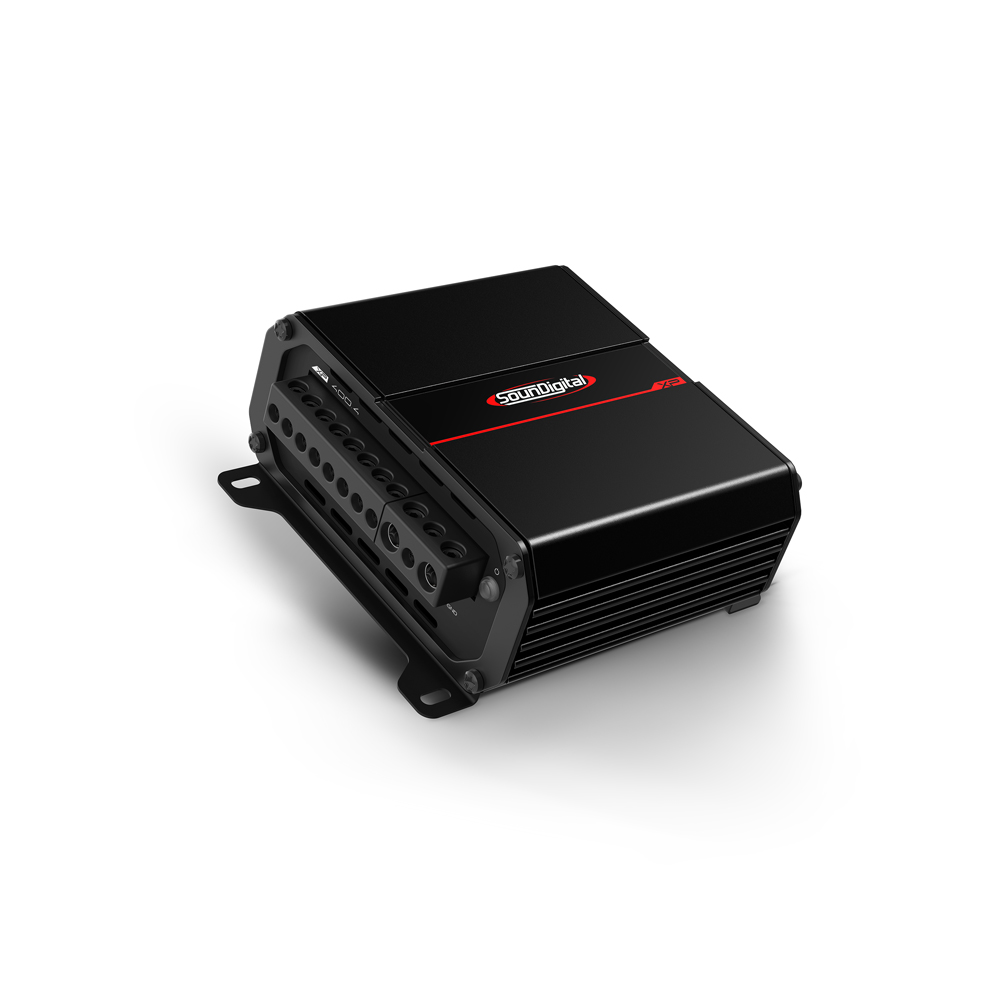

XP 400.4



At the pinnacle of performance and innovation, we proudly present the XP line—an impressive evolution in your audio experience. Designed with state-of-the-art technology and enhanced by artificial intelligence, XP amplifiers embody the core DNA of SounDigital: innovation, excellence, and precision.

The XP line delivers exceptional audio performance, combining advanced engineering with superior components to ensure reliability and remarkably faithful sound clarity. Its compact and versatile design allows seamless integration into a wide range of applications, meeting diverse needs with efficiency and practicality.

Whether you’re an audiophile or a casual listener, XP amplifiers elevate your audio experience, striking the perfect balance between cutting-edge technology and exceptional quality. With the XP line, hear sound as it was meant to be heard.



TECHNICAL SPECIFICATIONS

XP 400.4 – 4Ω
Power @ 4Ω: 4 X 66 WRMS
Power @ 2Ω: 4 X 100 WRMS
Power @ 1Ω: N/A
Bridge Power @ 8Ω: 2 X 132 WRMS
Bridge Power @ 4Ω: 2 X 200 WRMS
Bridge Power @ 2Ω: N/A
Operating Voltage: 9V – 16V
Current Draw (Music): 17 A
Current Draw (Max): 34 A
Recommended Fuse (Music): 20 A
Frequency Response (-3dB): 5Hz – 36kHz
SNR: 96dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Recommended Battery: 40aH
Power Cable: 7AWG
Speaker Cable: 15AWG
Product Dimensions: 4.69 x 4.44 x 2.0 in
Product Dimensions: 11.9 x 11.3 x 5.0 cm
