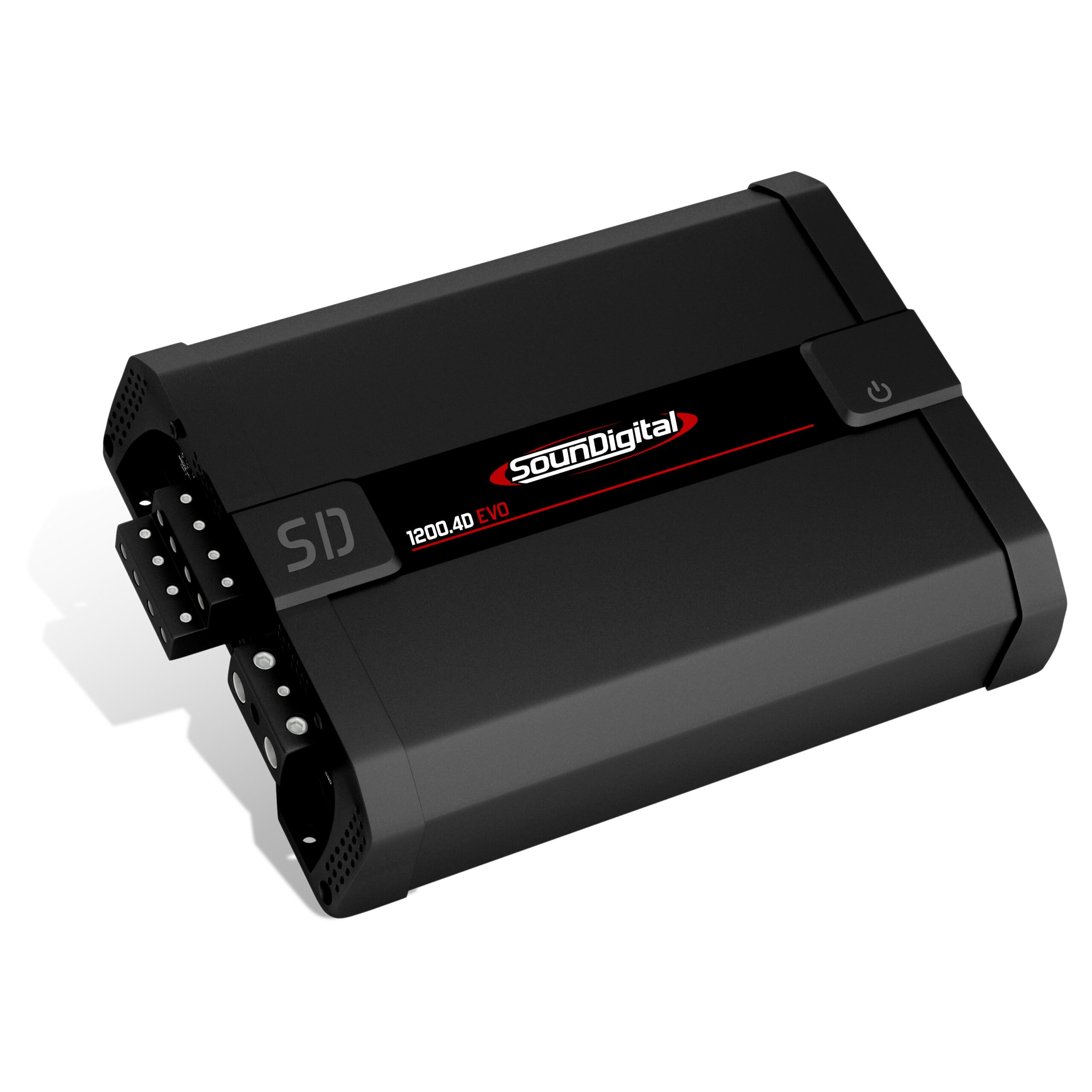

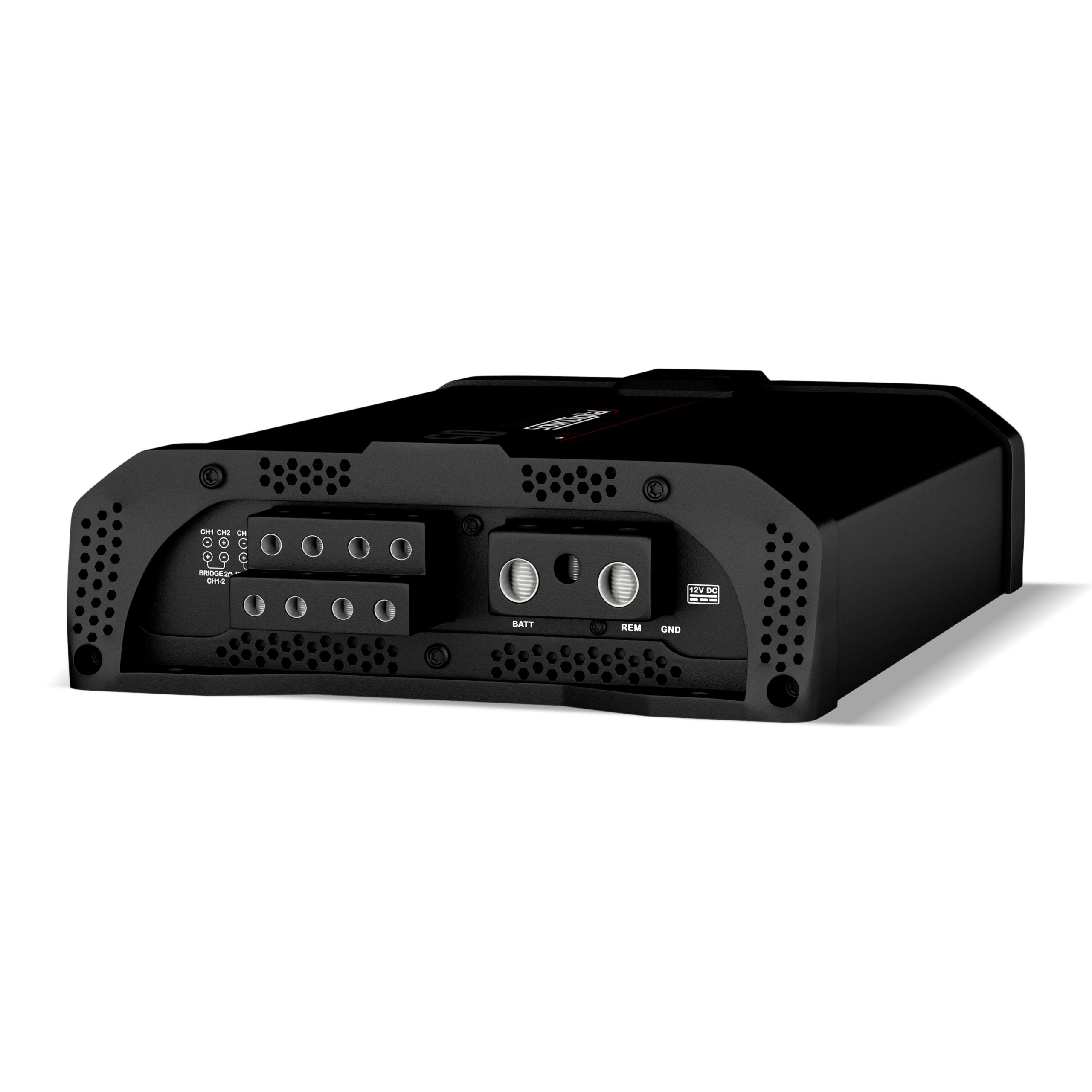

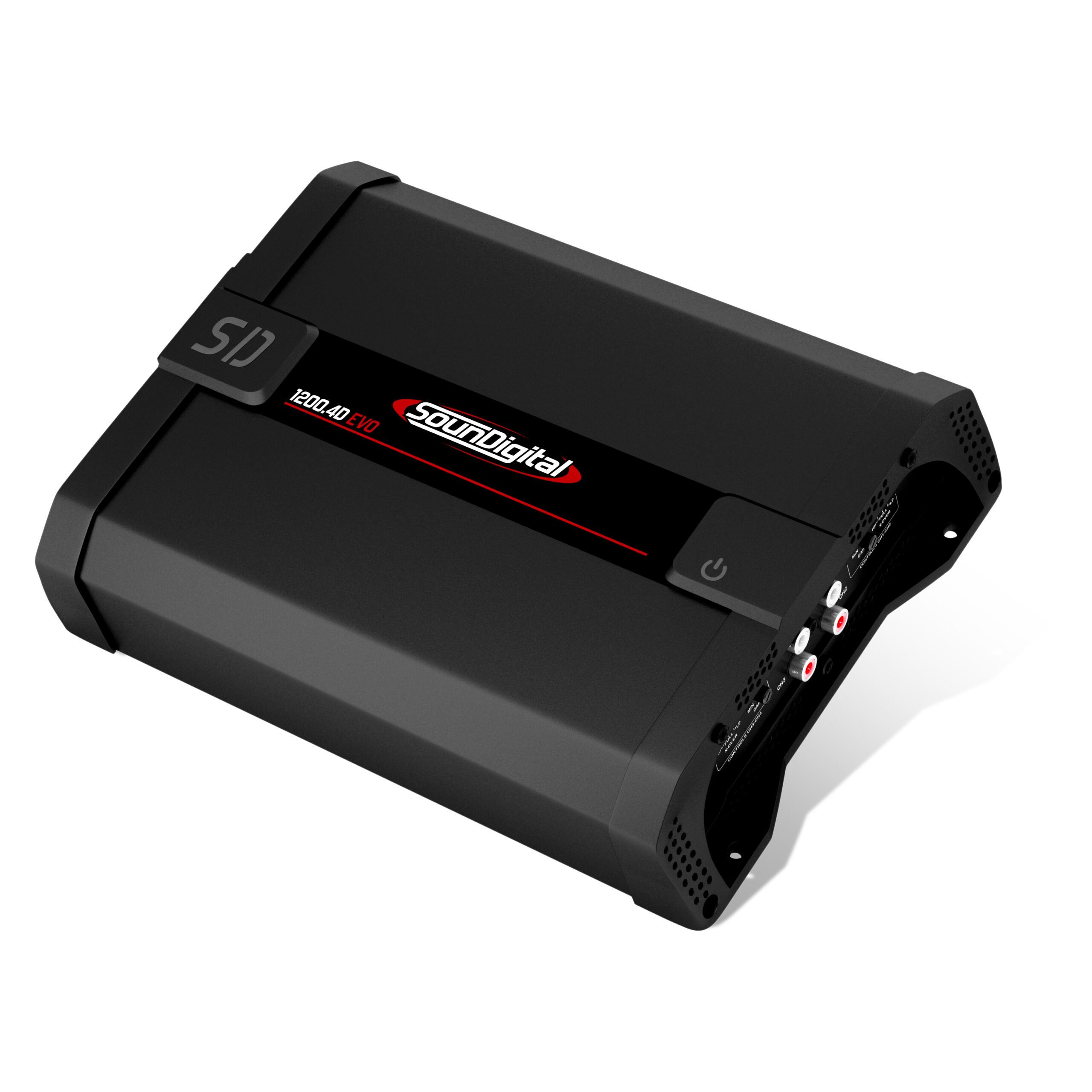

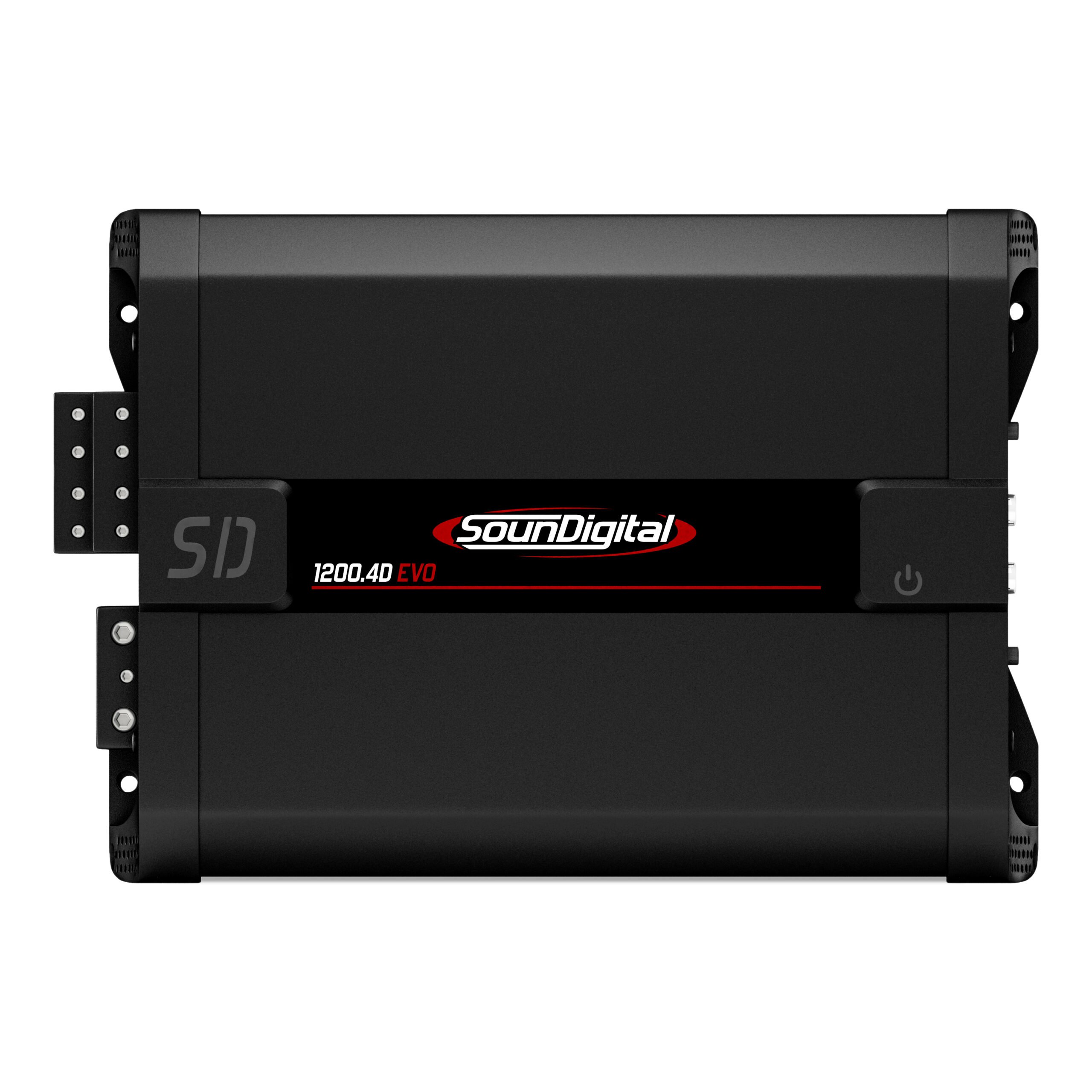

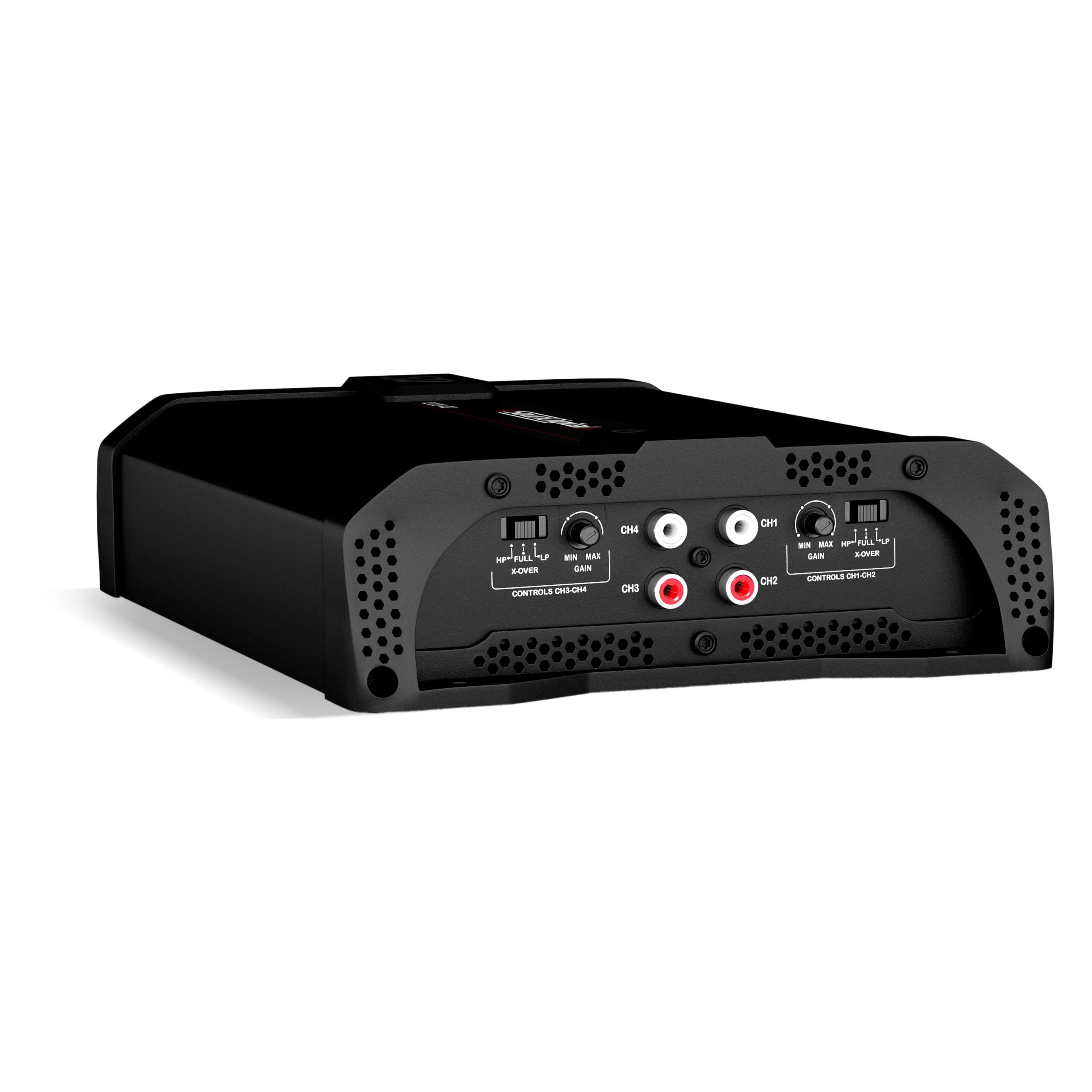

1200.4D EVO



THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.



READ MORE

TECHNICAL SPECIFICATIONS

1200.4D 2Ω
Power @ 12.6V @ 1Ω: 4 x 300 W RMS
Power @ 12.6V @ 2Ω: 4 x 165 W RMS
Power @ 12.6V @ 4Ω: 4 x 91 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 600 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 330 W RMS
Power @ 14.4V @ 1Ω: 4 x 392 W RMS
Power @ 14.4V @ 2Ω: 4 x 215 W RMS
Power @ 14.4V @ 4Ω: 4 x 119 W RMS
Bridge Power @ 14.4V @ 2Ω: 2 x 784 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 431 W RMS
1200.4D 4Ω
Power @ 12.6V @ 2Ω: 4 x 300 W RMS
Power @ 12.6V @ 4Ω: 4 x 165 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 600 W RMS
Power @ 14.4V @ 2Ω: 4 x 392 W RMS
Power @ 14.4V @ 4Ω: 4 x 215 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 784 W RMS
Operating Voltage: 9V – 16V
Current Draw (Music): 66A
Current Draw (Max): 132A
THD+N – (10% Rated Power): 0,007%
Damping Factor: 20
SNR: 92 dB
Frequency Response: 5 Hz – 20 kHz
HPF: 80Hz
LPF: 80Hz
Recommended Fuse: 70A
Dimensions (L x W x H) 10.31 x 7.09 x 2.09 in
