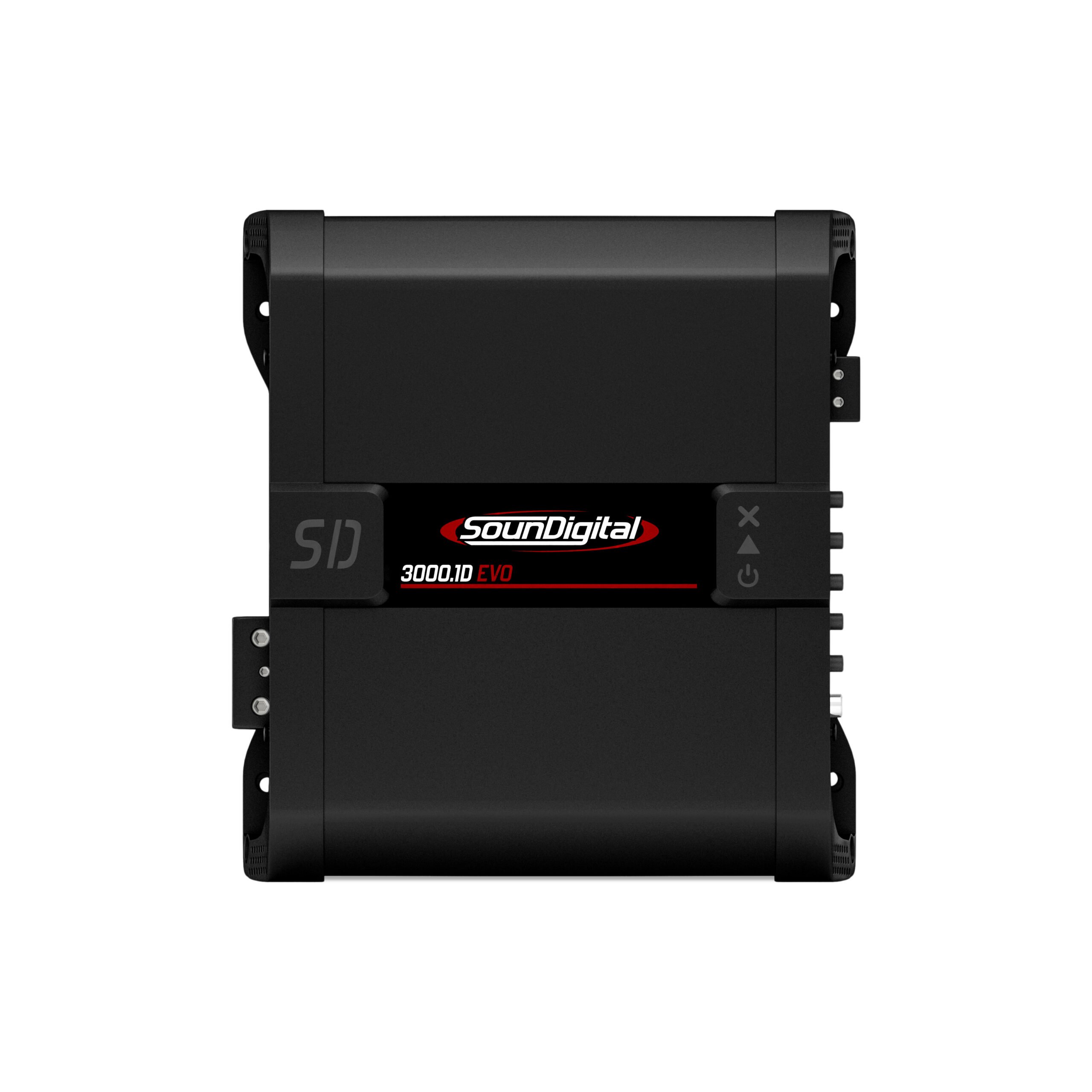

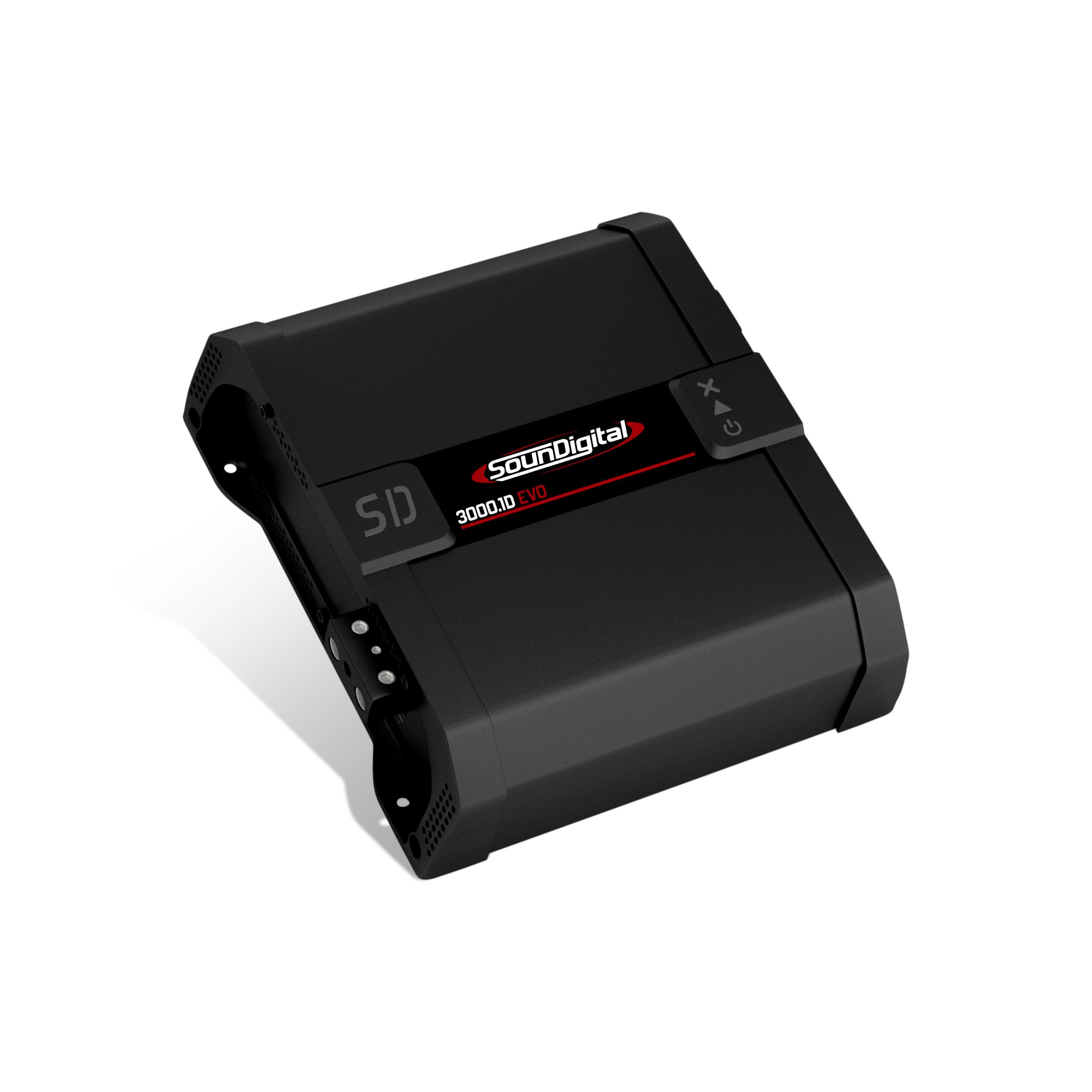

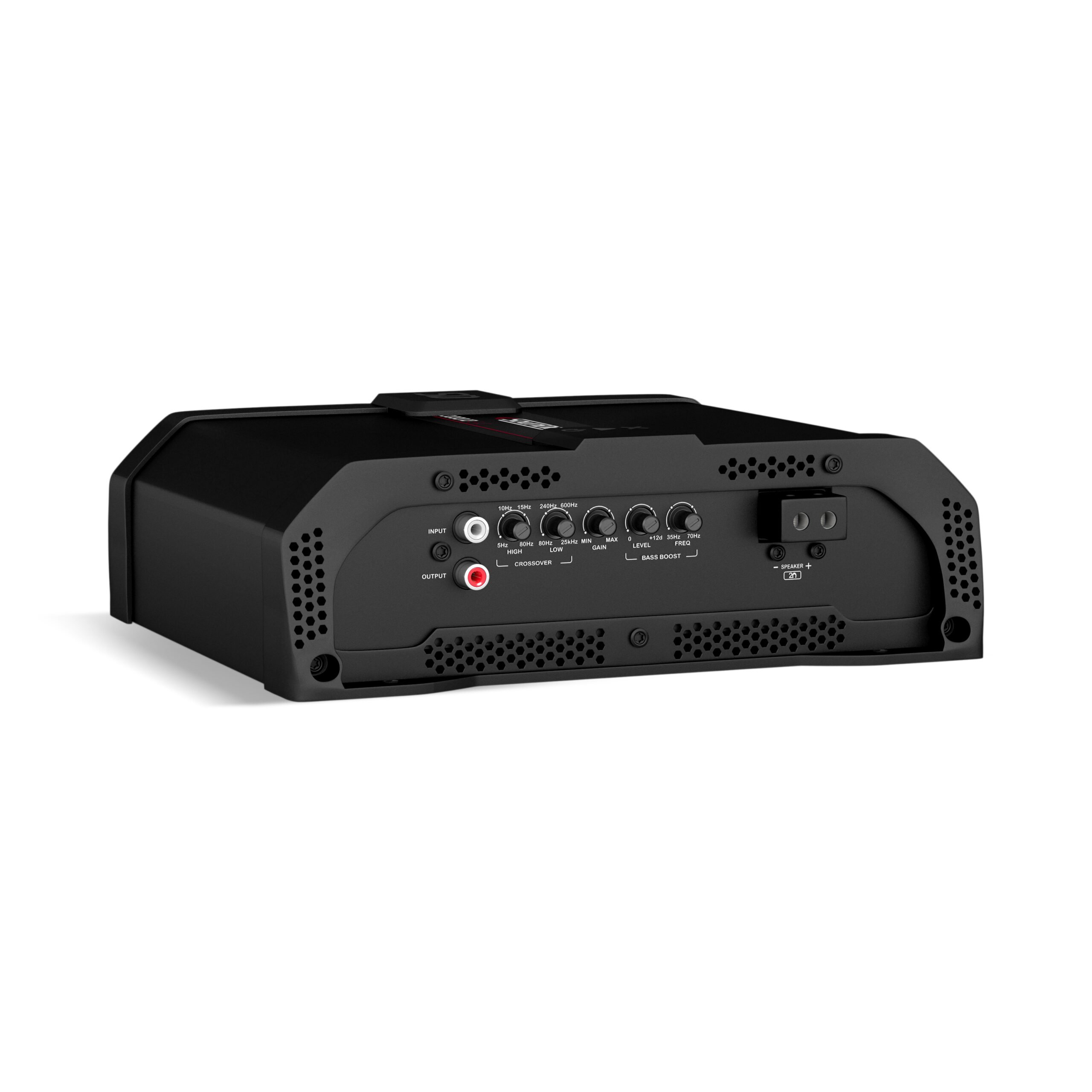

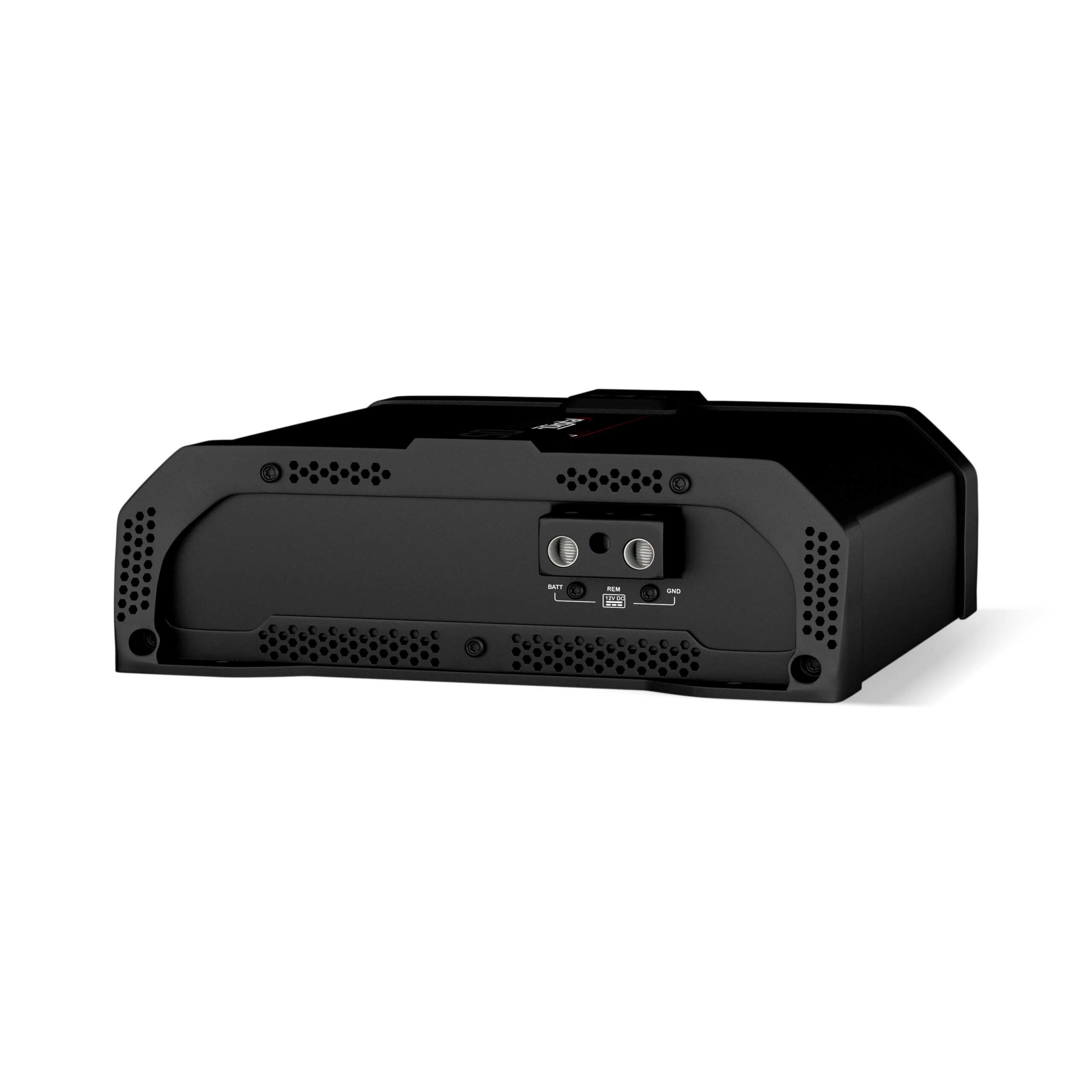

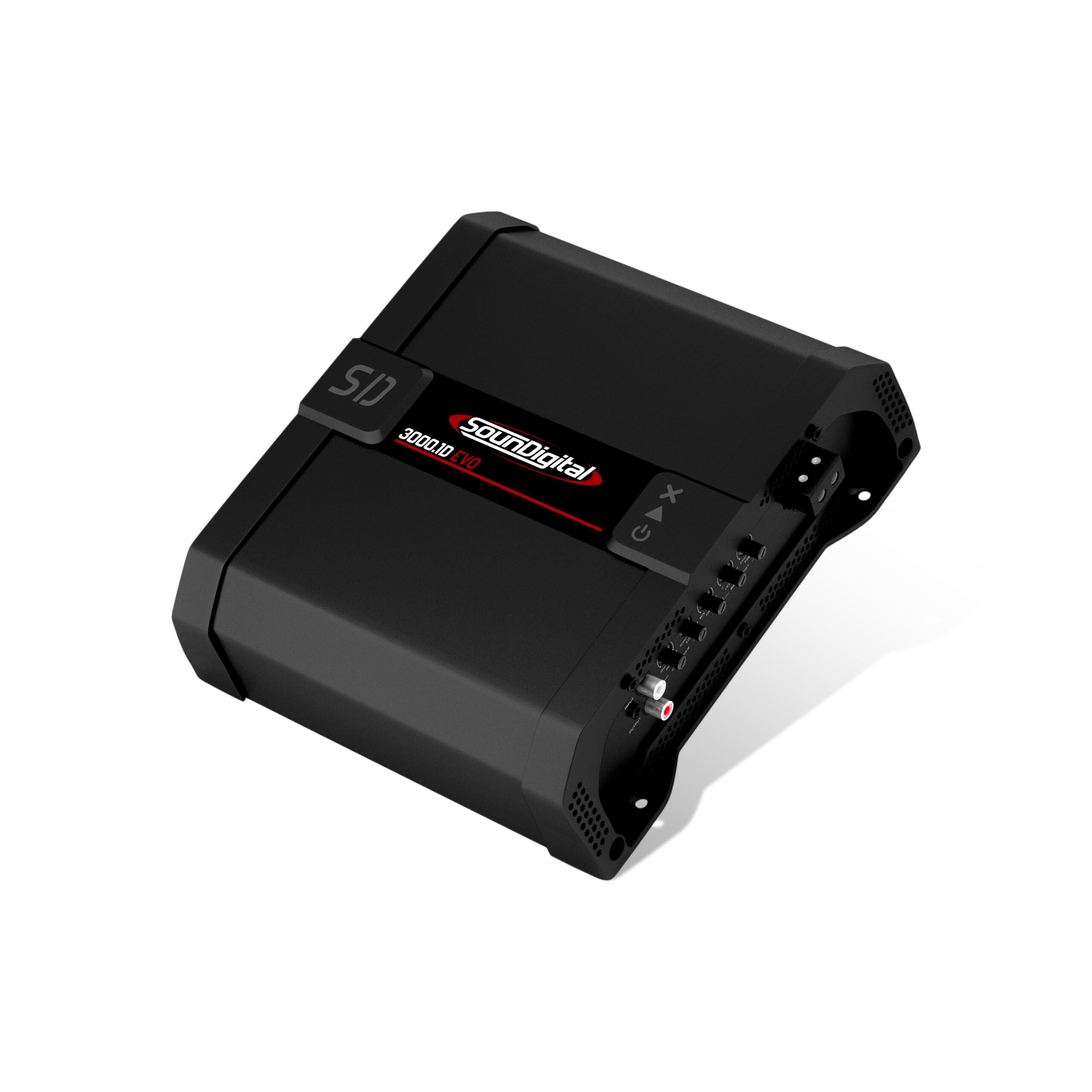

3000.1D EVO



THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.



READ MORE

TECHNICAL SPECIFICATIONS

3000.1D 1Ω
Power @ 12.6V @ 1Ω: 1 x 3000 W RMS
Power @ 12.6V @ 2Ω: 1 x 1650 W RMS
Power @ 12.6V @ 4Ω: 1 x 908 W RMS
Power @ 14.4V @ 1Ω: 1 x 3918 W RMS
Power @ 14.4V @ 2Ω: 1 x 2155 W RMS
Power @ 14.4V @ 4Ω: 1 x 1185 W RMS
3000.1D 2Ω
Power @ 12.6V @ 2Ω: 1 x 3000 W RMS
Power @ 12.6V @ 4Ω: 1 x 1650 W RMS
Power @ 14.4V @ 2Ω: 1 x 2155 W RMS
Power @ 14.4V @ 4Ω: 1 x 3918 W RMS
Operating Voltage: 9V – 16V
Current Draw (Max): 305A
Current Draw (Music): 153A
THD (10% Rated Power): 0.025%
Damping Factor: >1000
SNR: 84dB
Frequency Response: 5 Hz – 25 kHz
Crossover HPF: 5 Hz – 60 Hz (12 dB/oct)
Crossover LPF: 80 Hz – 25 kHz (24 dB/oct)
Bass Boost: 0 – 12dB
Bass Boost Range: 35Hz – 55Hz
Recommended Fuse: 150 A (Music) / 2 x 250 A (SPL)
Dimensions (L x W x H): 8.62 x 9.06 x 2.8 in
