THE NEW NANO LINE brings in the same amazing performance we already see in the EVO LINE, but even more compact and efficient!

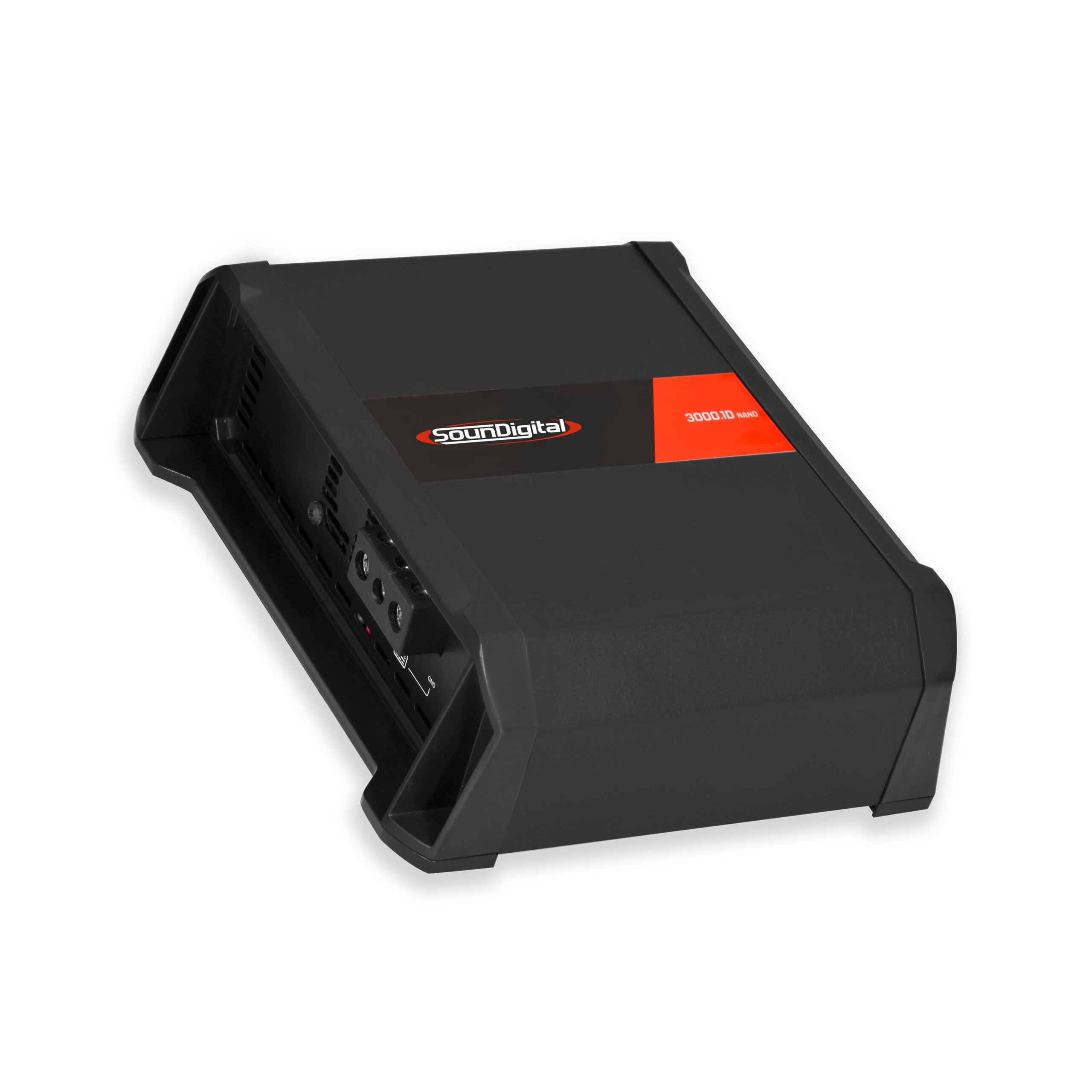

3000.1D NANO
TECHNICAL SPECIFICATIONS
3000.1D NANO 1Ω
Power @ 14.4V @ 1Ω: 1 x 3000 W RMS
Power @ 14.4V @ 2Ω: 1 x 1650 W RMS
Power @ 14.4V @ 4Ω: 1 x 908 W RMS
3000.1D NANO 2Ω
Power @ 14.4V @ 2Ω: 1 x 3000 W RMS
Power @ 14.4V @ 4Ω: 1 x 1650 W RMS
Operating Voltage: 8V – 16V
Current Draw (Max): 302A
Current Draw (Music): 150A
Damping Factor: >80
SNR: 82dB
Frequency Response: 5 Hz – 20 kHz
Crossover HPF: 5 Hz – 80 Hz (12 dB/oct)
Crossover LPF: 80 Hz – 20 kHz (24 dB/oct)
Bass Boost: 0 – 12dB @ 50 Hz
Recommended Fuse: 150 A (Music) Dimensions (L x W x H): 7.4 x 8 x 2.8 in
