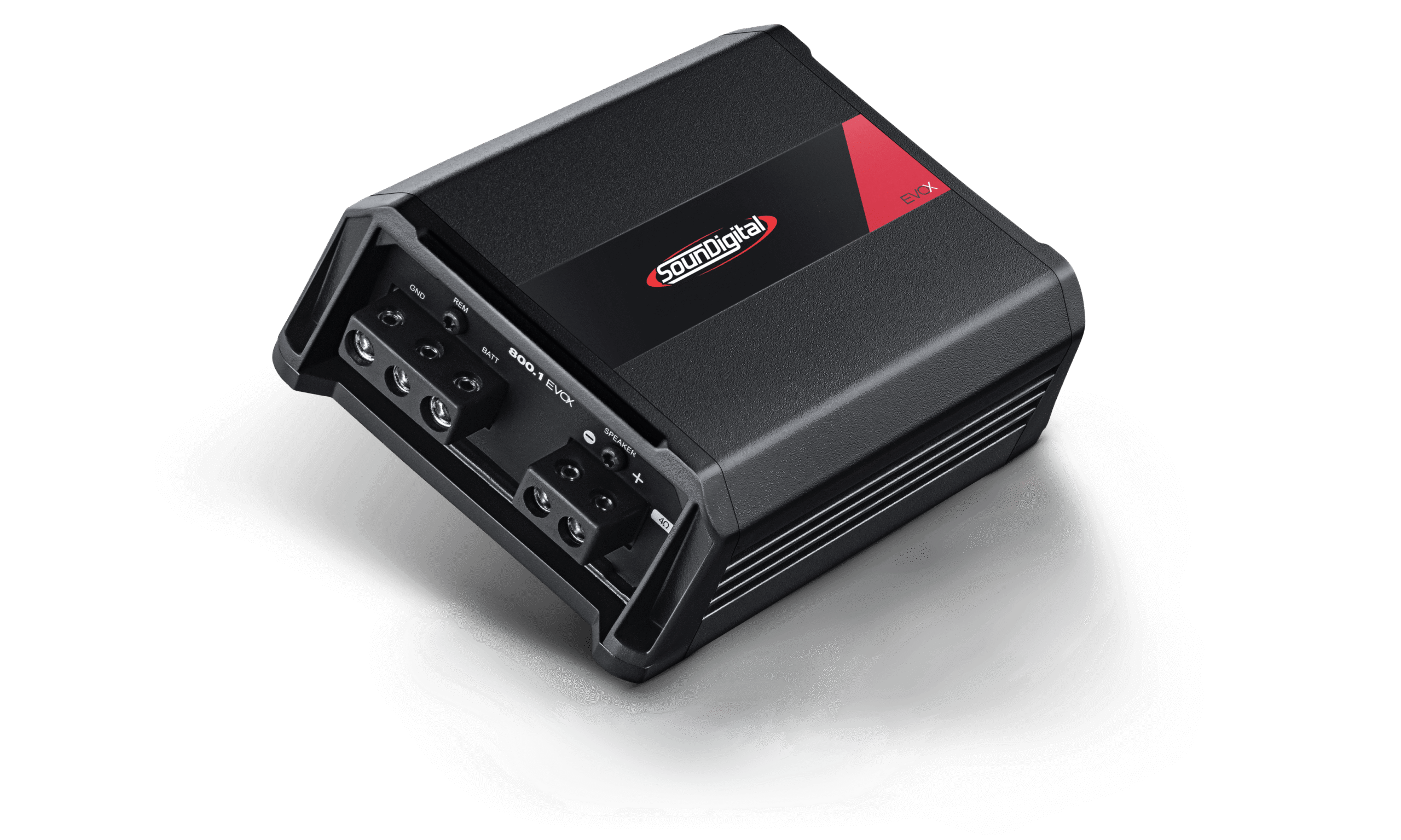

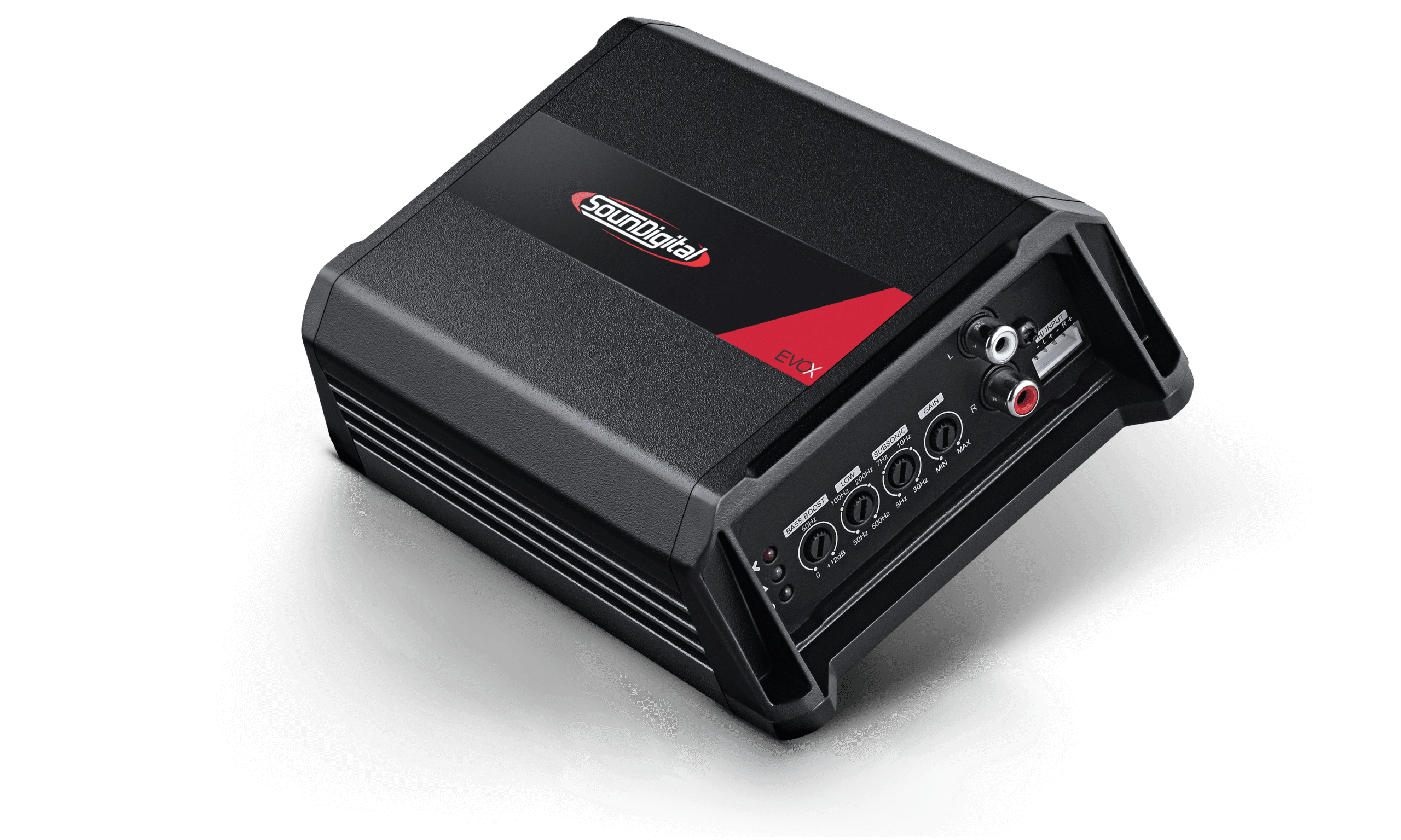

800.1 EVOX



The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.



READ MORE

TECHNICAL SPECIFICATIONS

800.1 EVOX – 2Ω
Power @ 12.6V @ 4Ω: 1 X 528 WRMS
Power @ 12.6V @ 2Ω: 1 X 800 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: N/A
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 589 WRMS
Power @ 14.4V @ 2Ω: 1 X 892 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: N/A
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 39 A
Current Draw (Max): 78 A
Recommended Fuse (Music): 40 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 1.9 in
Product Dimensions: 14.8 x 11.3 x 5.0 cm

800.1 EVOX – 4Ω
Power @ 12.6V @ 4Ω: 1 X 800 WRMS
Power @ 12.6V @ 2Ω: N/A
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: N/A
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 892 WRMS
Power @ 14.4V @ 2Ω: N/A
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: N/A
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 40 A
Current Draw (Max): 79 A
Recommended Fuse (Music): 40 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 1.9 in
Product Dimensions: 14.8 x 11.3 x 5.0 cm
