THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.
READ MORE

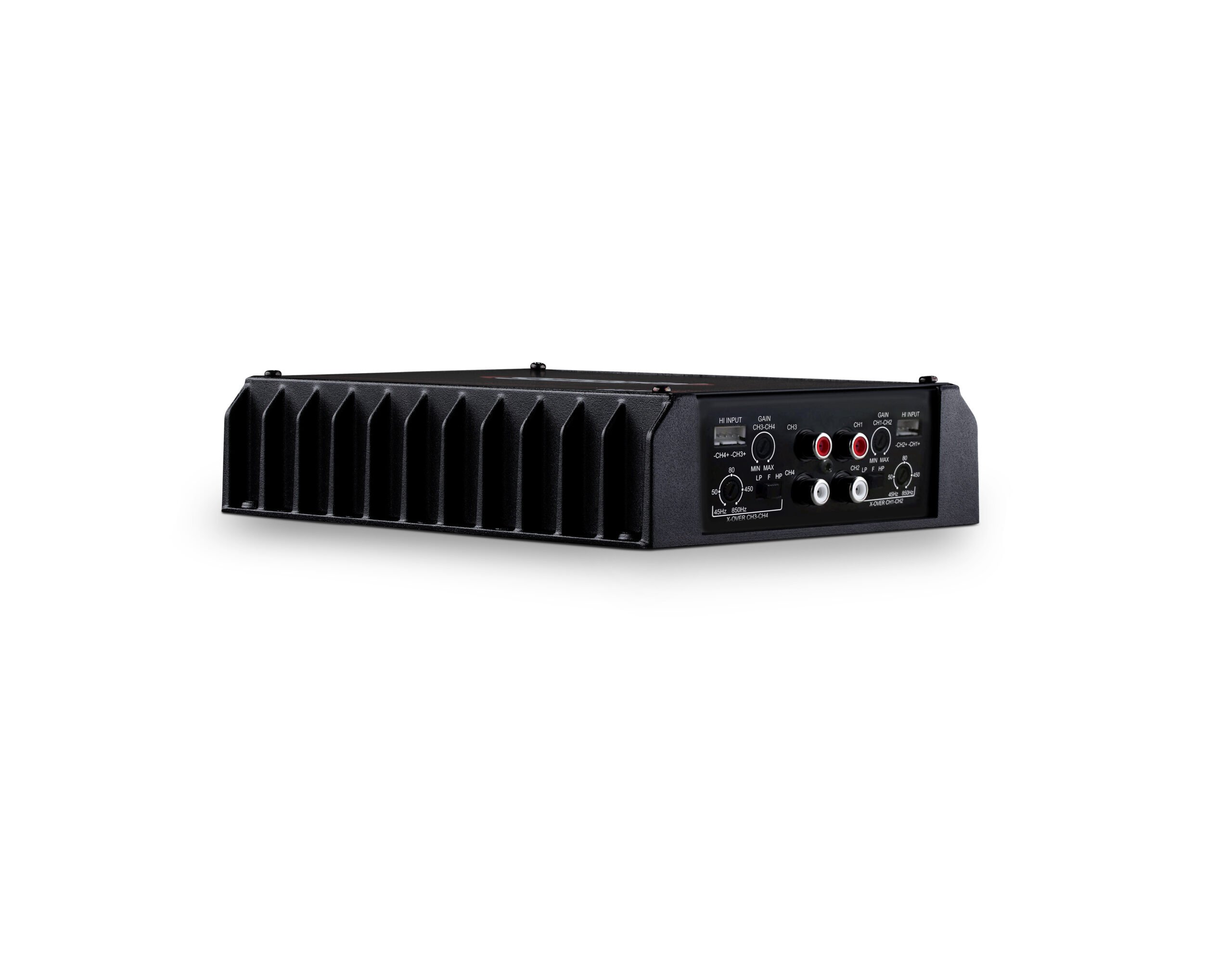

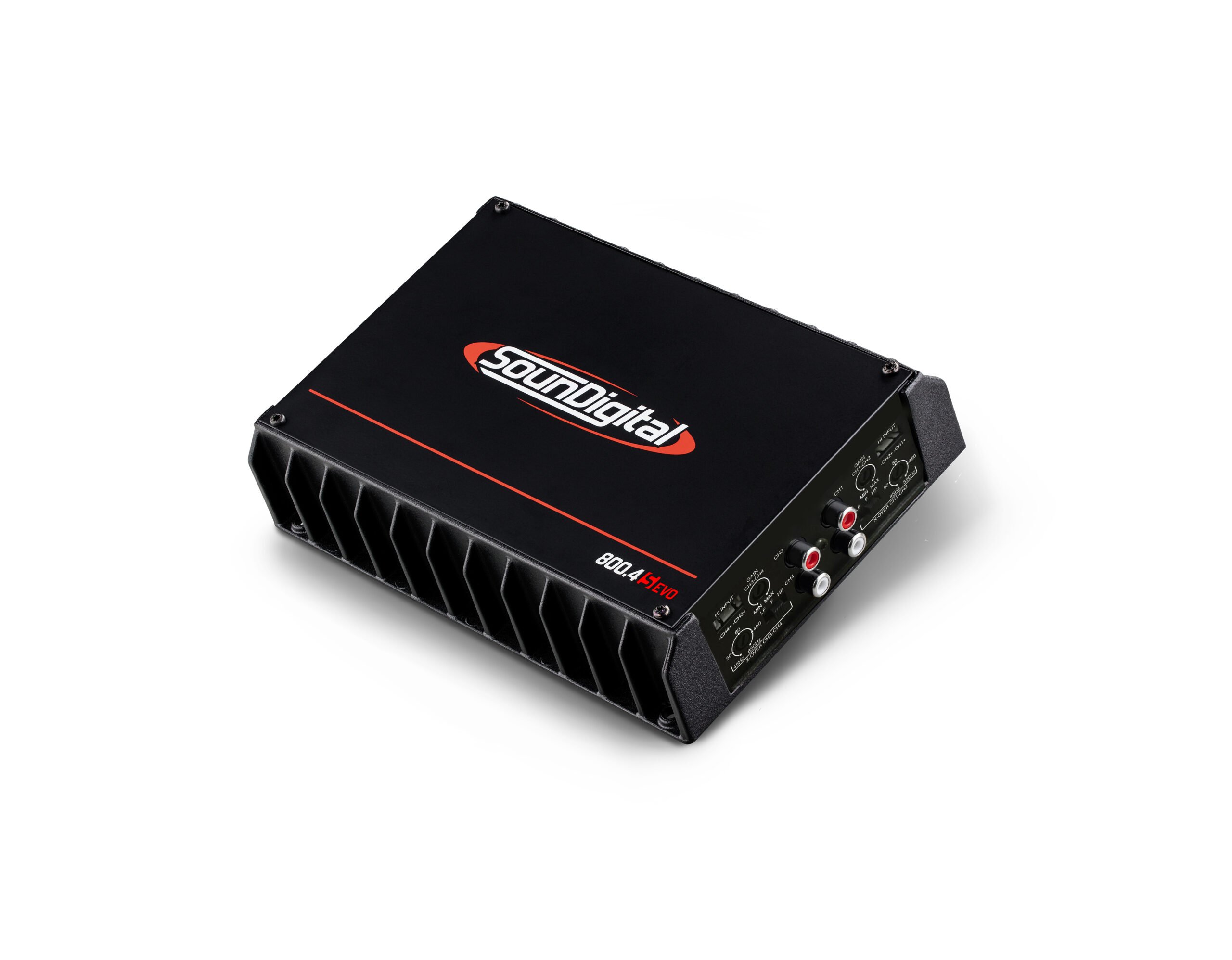

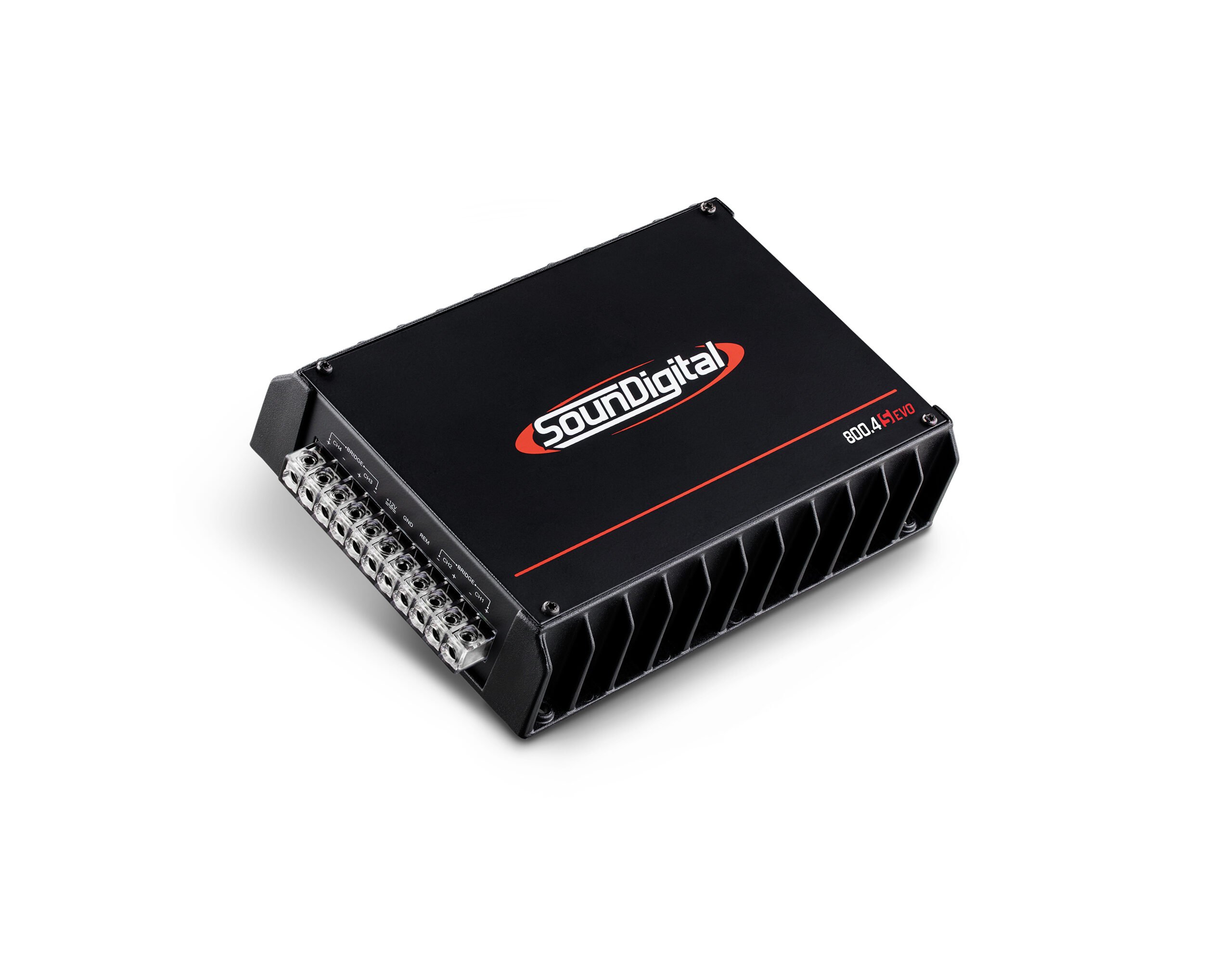

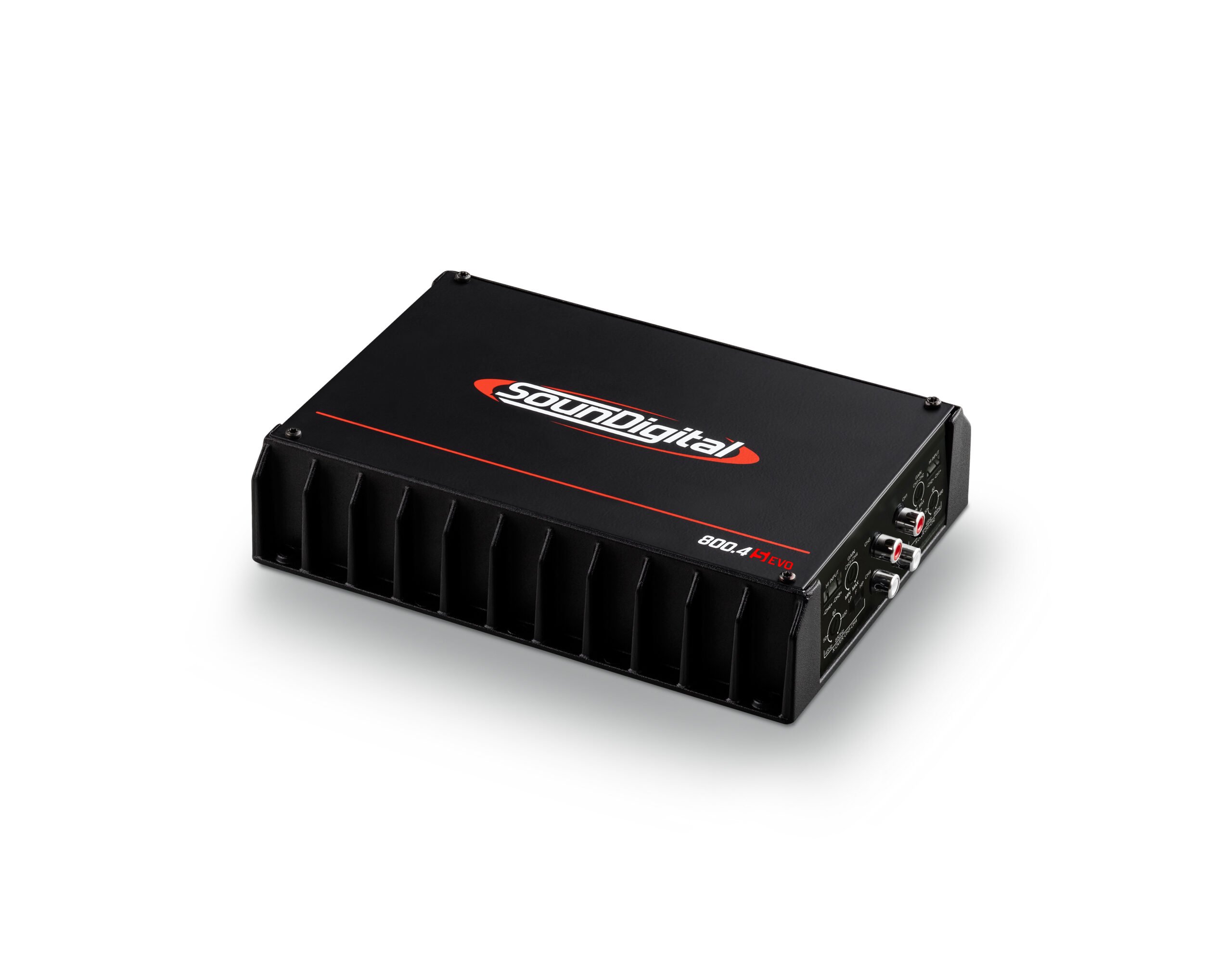

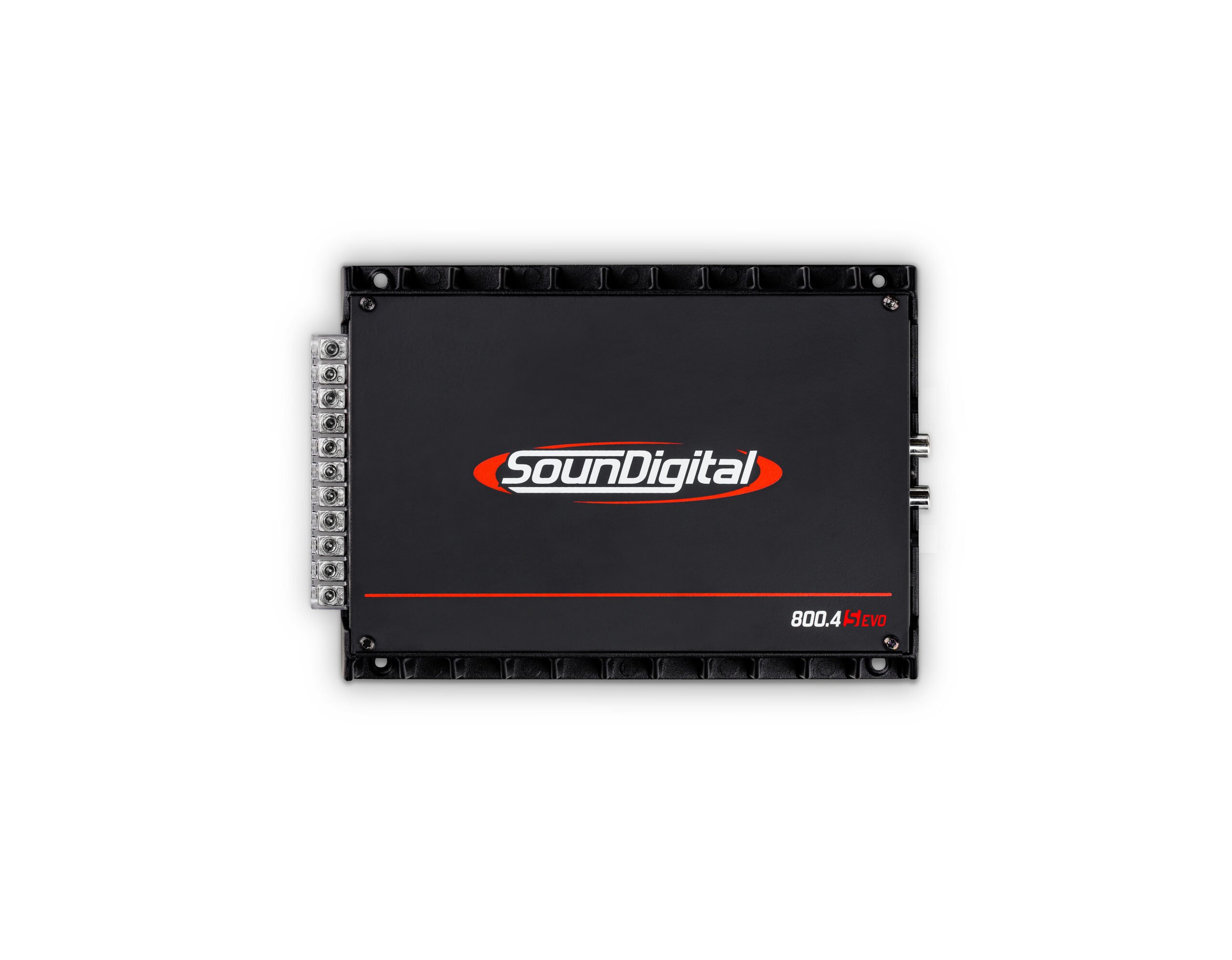

800.4S EVO
TECHNICAL SPECIFICATIONS
800.4D EVO 2Ω
Power @ 12.6V @ 1Ω: 4 x 200 W RMS
Power @ 12.6V @ 2Ω: 4 x 110 W RMS
Power @ 12.6V @ 4Ω: 4 x 61 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 400 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 220 W RMS
800.4D EVO 4Ω
Power @ 12.6V @ 2Ω: 4 x 200 W RMS
Power @ 12.6V @ 4Ω: 4 x 110 W RMS
Power @ 12.6V @ 8Ω: 4 x 61 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 400 W RMS
Bridge Power @ 12.6V @ 8Ω: 2 x 220 W RMS
Working Voltage: 9V – 16V
Current Draw (Music): 39A
Current Draw (Max): 78A
Recommended Fuse: 40A
THD + N – (rated power): 0.22%
THD + N – (50% of rated power): 0.022%
THD + N – (10% of rated power): 0.031%
Damping Factor: <200
SNR: 88dB
Frequency Response: 5Hz – 20kHz
Input Sensitivity: 0.5V to 6V
HPF: 80Hz
LPF: 80Hz
Dimensions (L x W x H): 8.66 x 5.79 x 1.81 in
Dimensions (L x W x H): 21.3 x 17.4 x 4.6 cm
Weight: 2.42 lbs (1.1 kg)
