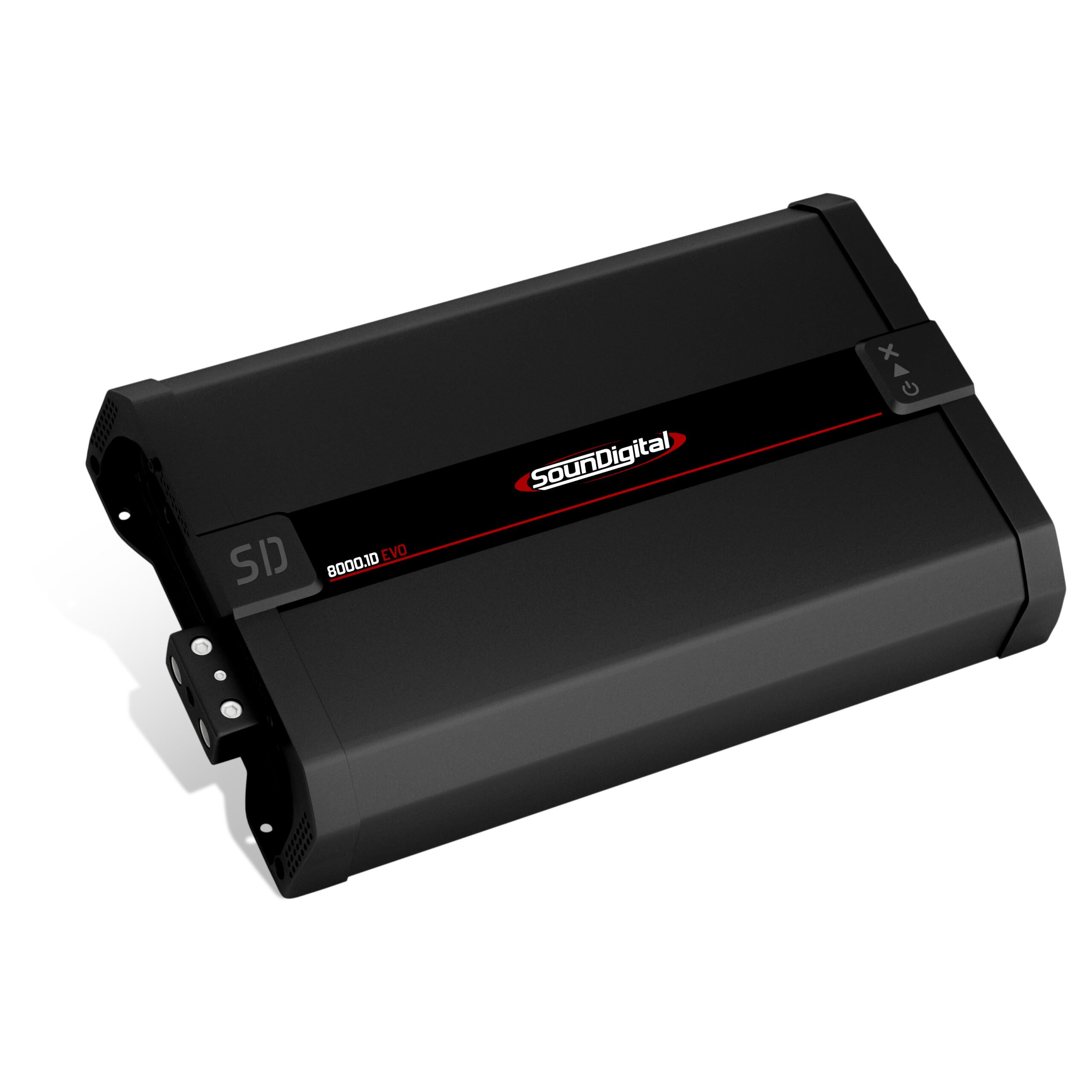

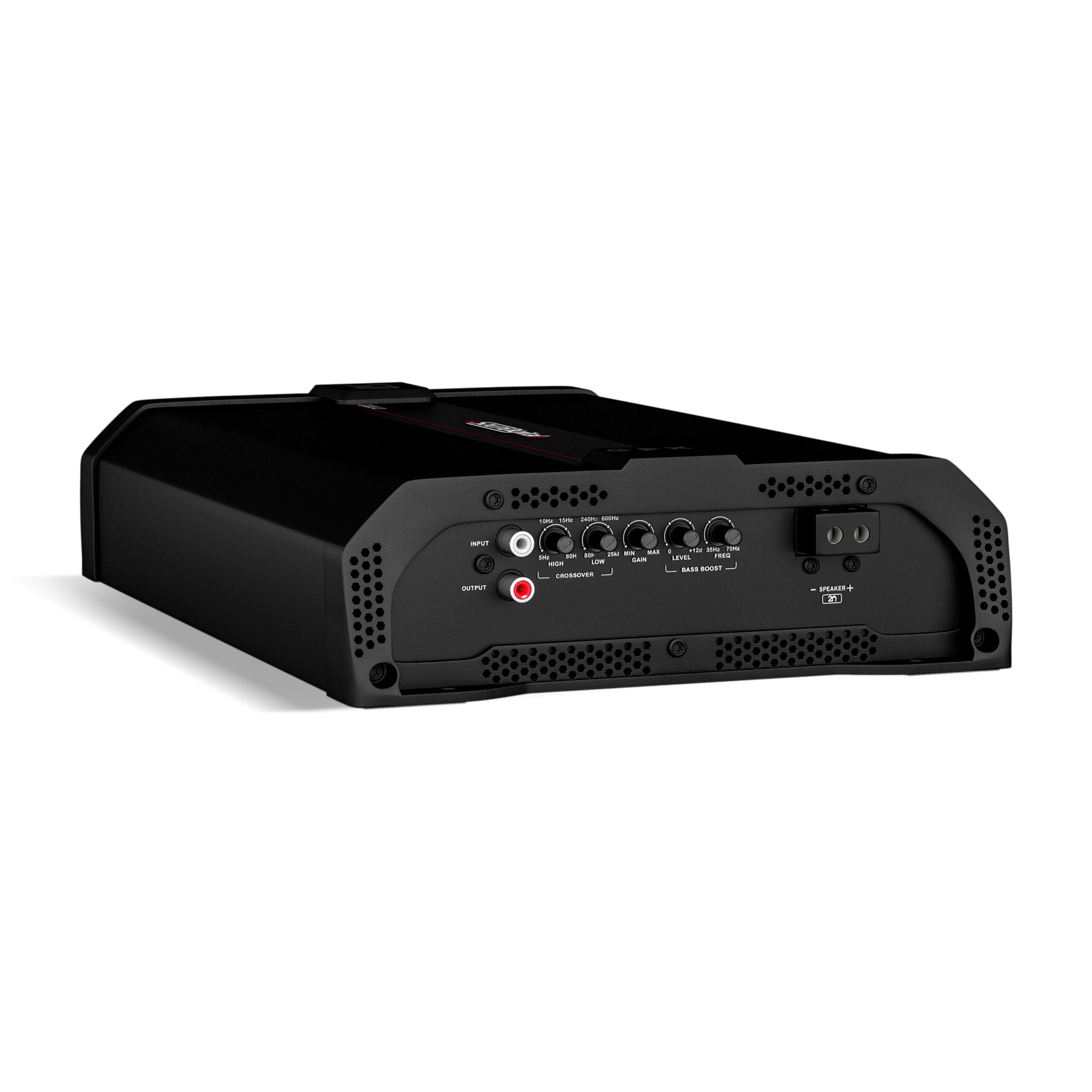

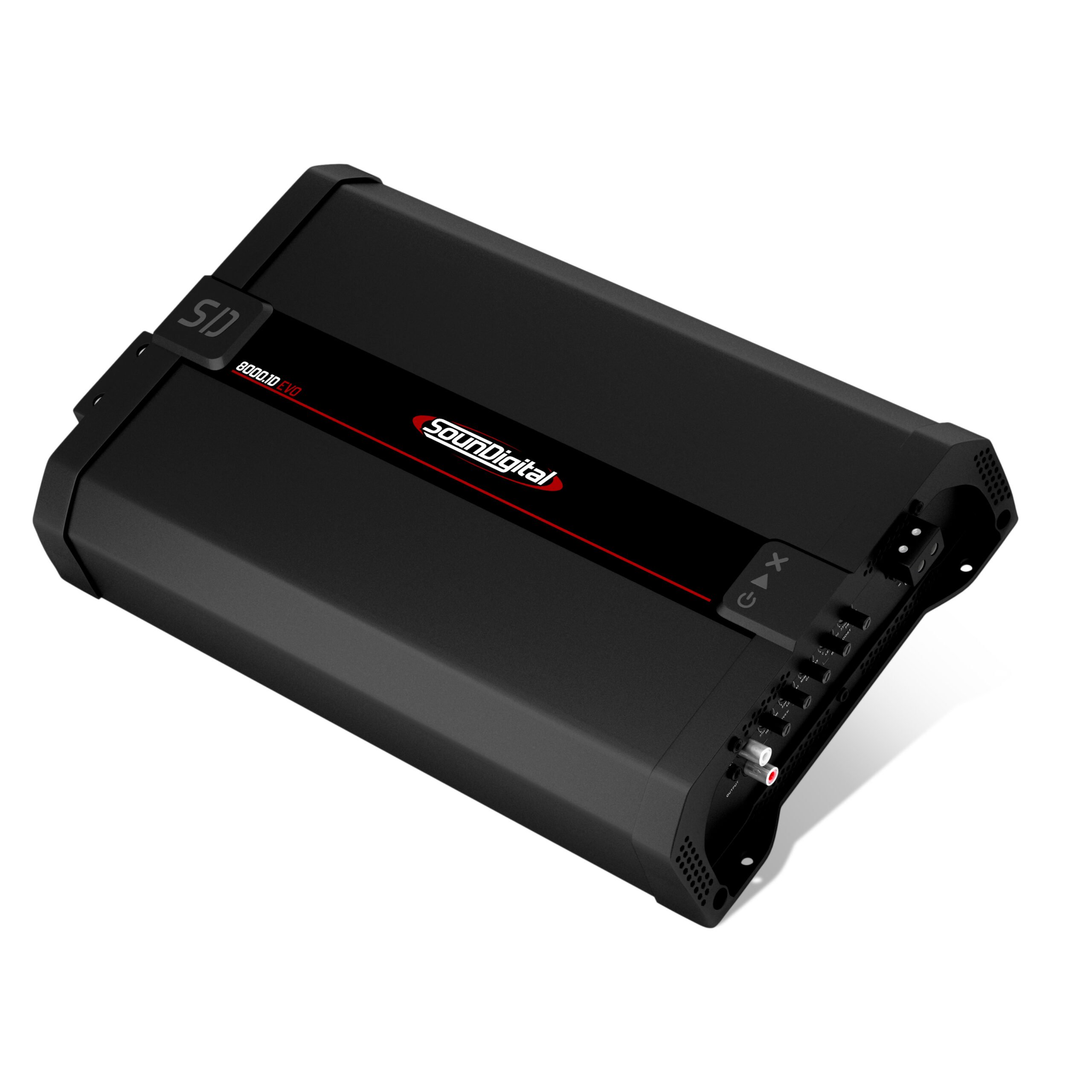

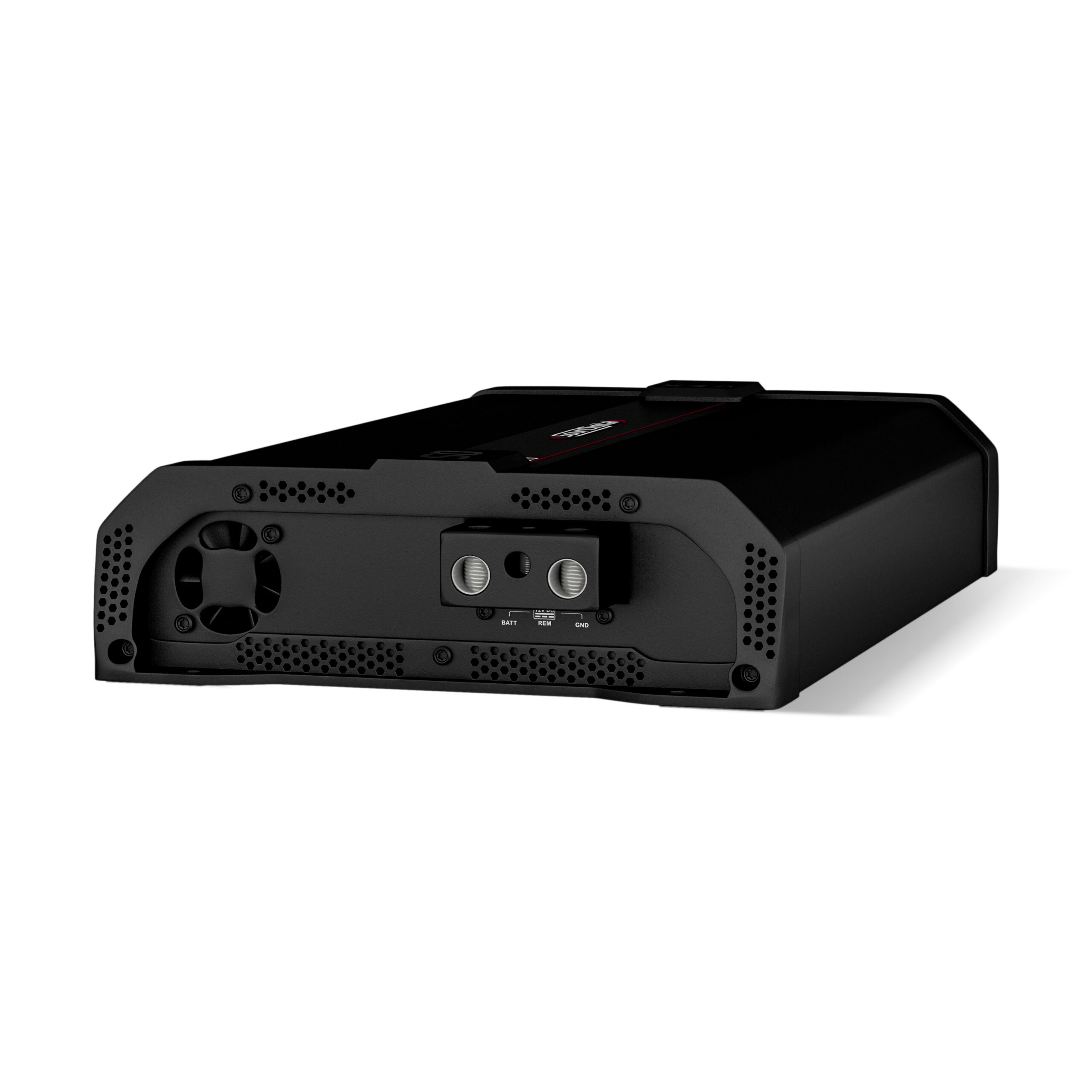

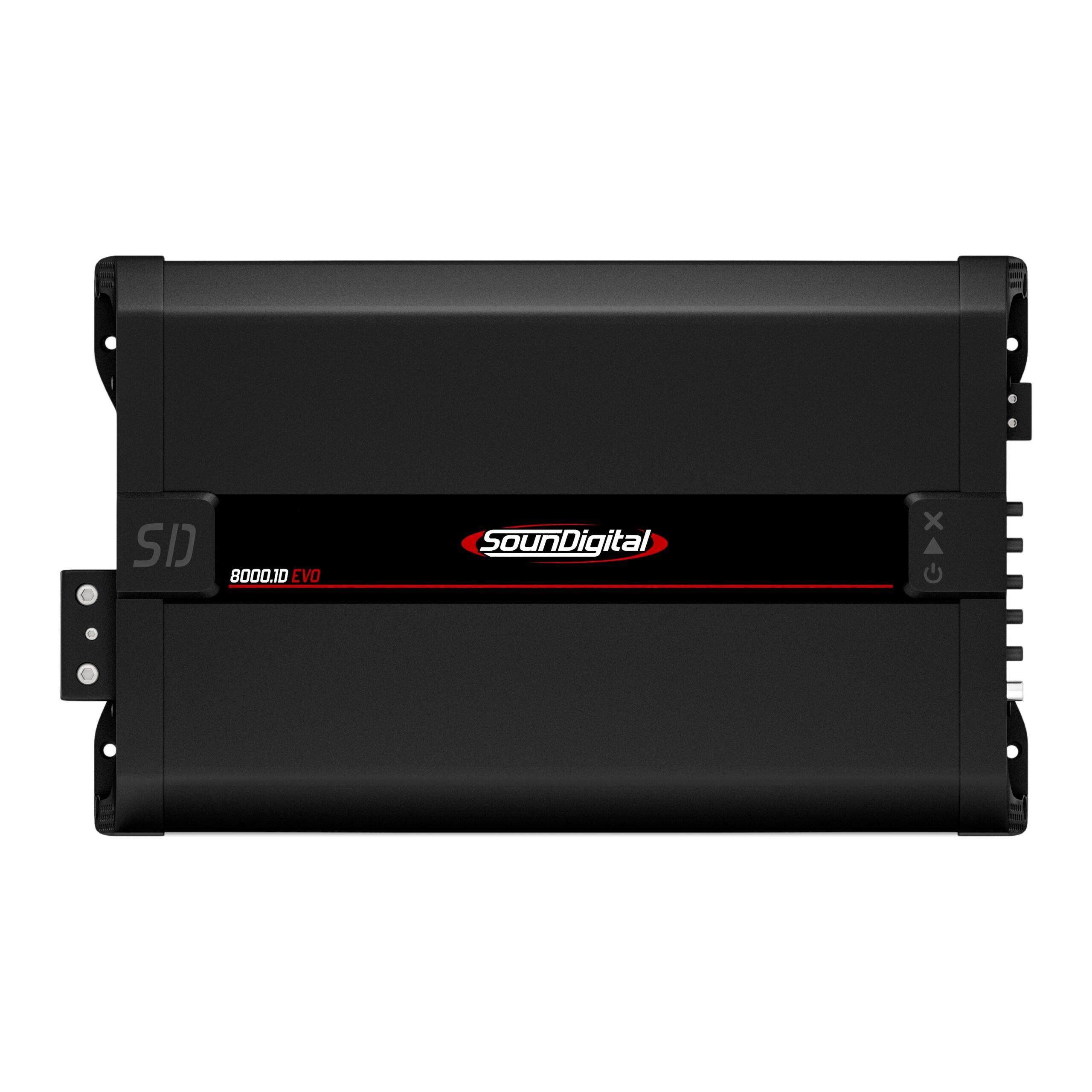

8000.1D EVO



THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.



READ MORE

TECHNICAL SPECIFICATIONS

8000.1D 1Ω
Power @ 12.6V @ 1Ω: 1 x 8000 W RMS
Power @ 12.6V @ 2Ω: 1 x 4400 W RMS
Power @ 12.6V @ 4Ω: 1 x 2420 W RMS
Power @ 14.4V @ 1Ω: 1 x 10448 W RMS
Power @ 14.4V @ 2Ω: 1 x 5746 W RMS
Power @ 14.4V @ 4Ω: 1 x 3161 W RMS
8000.1D 2Ω
Power @ 12.6V @ 2Ω: 1 x 8000 W RMS
Power @ 12.6V @ 4Ω: 1 x 4400 W RMS
Power @ 14.4V @ 2Ω: 1 x 10448 W RMS
Power @ 14.4V @ 4Ω: 1 x 5746 W RMS
Operating Voltage: 9V – 16V
Current Draw (Music): 418 A
Current Draw (Max): 835 A
THD + N (10% Rated Power): 0.08%
Damping Factor: >1000
SNR: 73dB
Frequency Response: 5Hz – 20KHz
Crossover HPF: 5 Hz – 80 Hz (12 dB/oct)
Crossover LPF: 80 Hz – 20 kHz (24 dB/oct)
Bass Boost: 0 a 12dB
Bass Boost Range 35Hz to 55 Hz
Recommended Fuse: 500 A (Music) / 2 x 500 A (SPL)
Dimensions (L x W x H): 15.2 x 9.06 x 2.8 in
